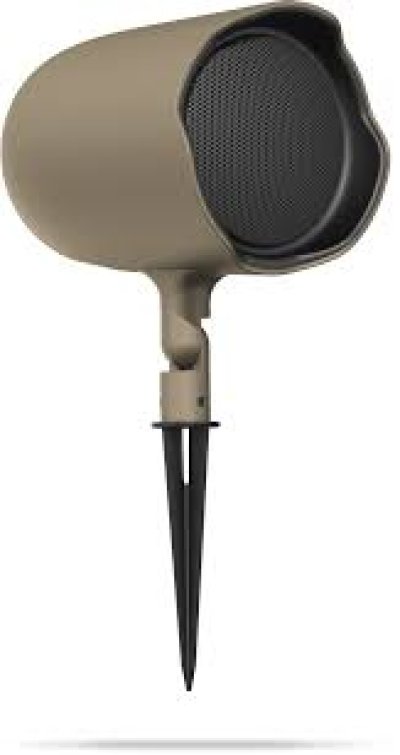

JBL GSF6-TN

Features


Transducers: 165 mm (6.5) woofer with polypropylene cone and 25 mm (1) voice coil on aluminum voice coil former; 25 mm (1.0) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
Frequency range: 65 Hz20 kHz
Power handling (at 8 setting): 50W continuous pink noise, 100W continuous program
Multi-tap 30W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
IP66 rated against water and dust ingress
Bottom drip hole provides drainage for drivers
Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
Aimable via adjustable hinge
Includes ground stake and L-bracket for surface mounting
Includes tap selector located on bottom of speaker, away from water incursion
Available in hunter green or tan finish




Downloads



Version
Language
Size
Uploaded
Specifications
 GSF6 Spec Sheet
A

585 KB
Jan 2023
Brochures
 Control Contractor Brochure (2023)
B

8.18 MB
Jun 2023
Install Guides
 GSF6 - Install Guide


455 KB
Jan 2023
Speaker Tunings
 Commercial, CBT, and AWC Tunings 220616
A

557 KB
May 2023
Ease Files
 GSF6 - EASE File


90.1 KB
May 2023
CLF Files
 GSF6 - CLF File


326 KB
May 2023


Specifications


Frequency Range (-10dB)
65 Hz 20 kHz
Frequency Response (+/-3 dB)
90 Hz - 18 kHz
Power Rating
100 W Continuous Program (2 hrs)
50 W (200 W Peak), Continuous Pink Noise (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (100 hrs)
Sensitivity
87 dB (ave. 300 kHz 12 kHz)
Maximum SPL
110 dB peak (104 dB continuous, 2 hr) @ 1m
Coverage Pattern
70° conical
Nominal Impedance
8 (at 8 tap)
Transformer Taps
70V: 30 W, 15 W, 7.5 W
100V: 30W, 15 W
Drivers
165 mm (6.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on aluminum voice coil former
25 mm (1.0 in) titanium dome, Neodymium magnet assembly, Kapton voice coil former
Terminals
Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG)
Enclosure Material
Polycarbonate + ABS, UL94V-0 flammability rated
Color
Pine Green RAL 6028, or Beige Grey RAL 7006
Dimensions
Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in).

Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base.
Net Weight
3.5 kg (7.7 lbs)
Included Accessories
(1) Ground Stake Bracket; (1) L-Bracket
