Ecler eMOTUS5OD สีขาว

DescriptioneMOTUS5OD is a 5" loudspeaker cabinet ready for outdoor installation. A professional and compact loudspeaker, cost-effective and with a unique design that will easily fit in a massive number of applications: theme parks, gardens, nature parks and urban spaces, leisure, health and sport centres, residential buildings, outdoor areas, etc. Available in black and white colour.
Features2-way cabinet, 5" woofer and 1" tweeter
40WRMS @ 8Ω
Power selector: 3,75 / 7,5/ 15 / 30W @ 100V & 8Ω position - 15 / 7.5 / 3.75 /1,8W @ 70V & 8Ω position
Outdoor design
IP65 rated

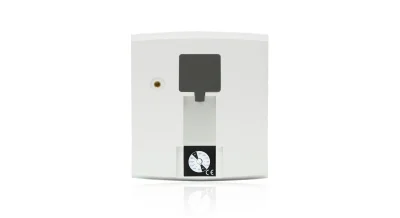

Back rubber cover for connections
Includes wall bracket and security steel cable
Available in black and white colour

SpecsSYSTEM
Effective Freq. Range
77 Hz-20 kHz (-10dB)
Coverage angle / Dispersion
150°x150° (HxV)
Power handling
40 W RMS / 160 W Peak
Sensitivity
85 dB (1W/1m)
Maximum SPL
101 dB continuous / 107 dB peak
Power options (Hi Z Multi-tap)
100V: 30W / 15W / 7,5W / 3,75W / 8
70V: 15W / 7,5W / 3,75W /1,8W / 8Ω
Recommended amplifier power
80 W RMS
TRANSDUCERS
Ways
2-ways full range
Low frequency driver
5" woofer
High frequency driver
1" coaxial tweeter
Nominal impedance
8
PHYSICAL
Connection type

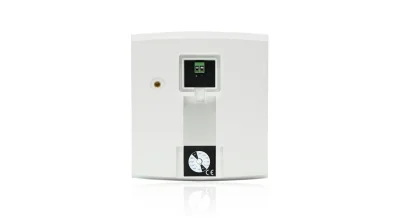

2-terminal input Euroblock connector (input)
Power type selector
Selectable transformer tap
Installation options
Surface, desktop
Environmental
IP65 rated
Enclosure material
ABS cabinet
Grille material
Aluminium grille
Mounting system
ABS bracket
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity
<90% HR
Included accessories
Wall-mount bracket, adhesive legs, back rubber
cover & security steel cable
Optional accessories
PCS124 cluster-mount system
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
Not including brackets:
173 x 180 x 181 mm / 6.8 x 7.1 x 9.8 in. (WxHxD)
Including brackets:
173 x 180 x 248 mm / 7.1 x 6.8 x 9.8 in. (WxHxD)

Weight
Not including brackets: 2.2 kg / 4.9 lb
Including brackets: 2.5 kg / 5.5 lb
