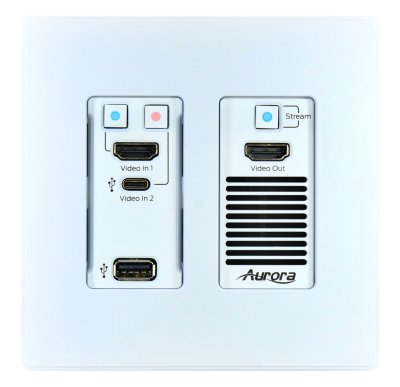

VPX-TC1-WP2-PRO
Overview
The VPX-TC1-WP2-PRO transceiver wall plate provides one of the most advanced 1G IP Streaming solutions on the market utilizing Auroras new Mimix CODEC technology. Mimix compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) of latency and seamless switching for fast lag free content.
InfoComm 2024 ReAX Room Demo Video
Power consumption is important as the VPX-TC1-WP2-PRO uses as little as 8 watts. It does this with in a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems.
Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. The 2 video inputs can be selected from the buttons, auto sense, or IP command. The audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device.
The USB is also flexible, working as a KVM and/or a high-speed data transfer for memory sticks & another port just for cameras. Together with the VPX-TC1 Pro box version, the possibilities are nearly limitless and scalable.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-WP2-PRO.
eg: speed, dual-mono,...
Features
4K60 4:4:4 UHD 120m over 1G CAT 5e
Zero Frame Latency (1.78ms)
HDR10, HDR10+, Dolby Vision
LPCM up to 12-channels, Dolby Digital Plus, Dolby
TrueHD DTS HD Master Audio, Dolby ATMOS
12 bits color depth processing, 16bits OSD
Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
Seamless Switching, Video Wall and Image Rotation
EPG & Channel Mapping
MJPEG Preview up to 720p30
1 HDMI Inputs, 1 USB-C Video/Data
USB 2.0 Type A

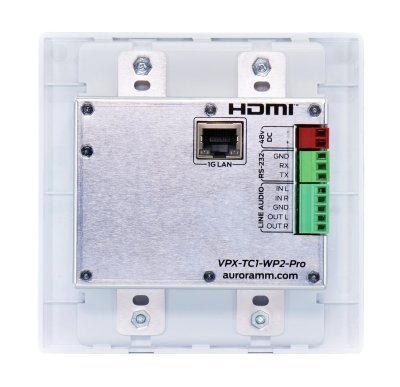

Line In/Out on Rear for Add-on Audio Wall Plates
1G LAN PoE
RS-232 Serial Port
Integrated Web Server for Configuration
AES67 Included
Dante® 2 Ch Audio License Option
Low Power at 8 Watts
2 Gang Mounting Available in White and Black
