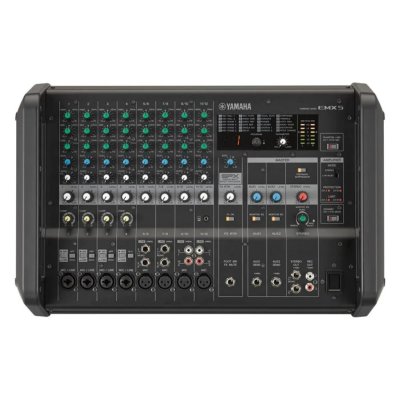

YAMAHA EMX5

พาเวอร์มิกซ์แบบตู้เหลี่ยมขนาด 12 แชนแนล เสียบไมค์ได้ 8 ช่อง ข้างในอัดแน่นทั้งภาคแอมป์และภาคมิกเซอร์ ระดับ Yamaha แล้วไม่ทำให้ผิดหวัง

แอมป์คลาส D
กำลังขับ 2 x 630 วัตต์
มีเอฟเฟคดิจิตอลในตัว ให้เลือกใช้ถึง 24 โปรแกรม
มี EQ 2 แบนด์ (Low, Mid, High) และ 1-Knob คอมเพรสเซอร์
ขนาดกะทัดรัด น้ำหนักเบา พกพาสะดวก

Outline
EMX5
I/O
Inputs
TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power
+48 V
Outputs
SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
Control and others
FOOT SWITCH : Effect Mute on/off
Bus
Stereo: 1, AUX: 2 (Including FX)
Input Channel Function
PAD
30 dB (CH1-4)
Hi-Z
Supported (CH4)
HPF
80 Hz, -12 dB/oct. (CH13)
COMP
1-knob COMP (CH14)
EQ HIGH
10 kHz +15 dB / -15 dB (Shelving)
EQ MID
2.5 kHz +15 dB / -15 dB (Peaking)
EQ LOW
100 Hz +15 dB / -15 dB (Shelving)
On-board processors
DSP
SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
On-board amplifiers
Maximum output power @4ohms
1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W
Maximum output power @8ohms
1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W
Level Meter
2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK)
General specifications
EMX5
Frequency response
Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz
Total harmonic distortion
Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF)
Hum & noise level
Equivalent input noise
-117 dBu (Noise is measured with A-weighting filter)
Residual output noise
Input to SPEAKERS : -70 dBu(40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -82dBu(20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter)
Crosstalk
-85 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit
Load protection
DC-fault
Amplifier protection
Over heat protection, Over current protection, Integral power protection
Power supply protection
Over heat protection, Over current protection
Power requirements
AC 100-240V, 50Hz/60Hz
Power consumption
42 W (Idle) / 210 W (1/8 Power)
Dimensions
W
465 mm (18 5/16)
H
308 mm (12 1/8)
D
325 mm (12 13/16)
Net weight
9.5 kg (20.9 lbs)
Accessories
Owners Manual, Technical Specifications, AC power cord (2.5 m)
Options
Foot switch: FC5, Rack-mount brackets: RK-EMX7
Others
Operating Temperature : 0 to +40
(0 dBu = 0.775 Vrms, Output impedance of signal generator (Rs) = 150 Ω All level controls are at their maximum position if not specified.)

YAMAHA EMX5 Input Characteristics

Input Jack
MIC/LINE
Hi-Z
Actual Load Impedance
For Use with Nominal
Input Level
Connector
Sensitivity *1
Nominal Level ( Position) *2
Max. Before Clip
CH 14
XLR
MIC

3 kΩ
50600 Ω Mics
-60 dBu (0.775 mV)
-43 dBu (5.48 mV)
-15 dBu (138 mV)
Combo jack *3 (Balanced)
LINE

-30 dBu (24.5 mV)
-13 dBu (173 mV)
+15 dBu (4.36 V)
Phone
MIC

8 kΩ
600 Ω Lines
-50 dBu (2.45 mV)
-33 dBu (17.3 mV)
-5 dBu (436 mV)
LINE

-20 dBu (77.5 mV)
-3 dBu (548 mV)
+25 dBu (13.8 V)
CH 4 (Hi-Z)
Phone
MIC
ON
1 MΩ
10 kΩ Lines
-50 dBu (2.45 mV)
-33 dBu (17.3 mV)
-5 dBu (436 mV)
Phone jack *4 (Unbalanced)
LINE
-20 dBu (77.5 mV)
-3 dBu (548 mV)
+20 dBu (7.75 V)
CH 5/6, 7/8
XLR


3 kΩ
50600 Ω Mics
-60 dBu (0.775 mV)
-43 dBu (5.48 mV)
-15 dBu (138 mV)
XLR-3-31 *5 (Balanced)
Phone
10 kΩ
600 Ω Lines
-20 dBu (77.5 mV)
-3 dBu (548 mV)
+25 dBu (13.8 V)
Phone jack *4 (Unbalanced)
CH 9/10, 11/12
XLR


3 kΩ
50600 Ω Mics
-60 dBu (0.775 mV)
-43 dBu (5.48 mV)
-15 dBu (138 mV)
XLR-3-31 *5 (Balanced)
Pin
10 kΩ
600 Ω Lines
-8 dBu (316 mV)
+10 dBu (2.45 V)
+25 dBu (13.8 V)
RCA pin (Unbalanced)
CH 11/12
Mini jack


10 kΩ
600 Ω Lines
-8 dBu (316 mV)
+10 dBu (2.45 V)
+25 dBu (13.8 V)
Stereo mini jack *6 (Unbalanced)
(0 dBu = 0.775 Vrms)
*1 Sensitivity is the lowest level that will produce an output of +4 dBu (1.228 V) or the nominal output level when the unit is set to maximum gain. (All level controls are at their maximum position.)
*2 Level controls setting : Channel level controls are at their t position. Master level controls are at their maximum position.
*3 1&Sleeve = GND, 2&Tip = HOT, 3&Ring = COLD
*4 Tip = Signal, Sleeve = GND
*5 1 = GND, 2 = HOT, 3 = COLD
*6 Tip = LEFT, Ring = RIGHT, Sleeve = GND

YAMAHA EMX5 Output Characteristics
Output Jack
Actual Source Impedance
For Use with Nominal
Output level
Connector
Nominal
Max. Before Clip
STEREO OUT L, R
600 Ω
10 kΩ Lines
+4 dBu (1.228 V)
+20 dBu (7.75 V)
Phone jack *1 (Impedance balanced)
AUX SEND 1, 2
600 Ω
10 kΩ Lines
+4 dBu (1.228 V)
+20 dBu (7.75 V)
Phone jack *1 (Impedance balanced)
REC OUT L, R
600 Ω
10 kΩ Lines
-10 dBV (0.308 V)
+18 dBV (7.75 V)
RCA pin (Unbalanced)
(0 dBu = 0.775 Vrms 0 dBV = 1.00 Vrms)
*1 Tip = HOT, Ring = COLD, Sleeve = GND

Speaker Output Characteristics
Output Jack
Actual Source Impedance
For Use with Nominal
Output level
Connector
1 kHz THD+N < 1% (CEA2006)
1 kHz THD+N < 10% (CEA2006)
SPEAKERS A, B
< 0.1 Ω
4 Ω Speakers
600 W (EMX7),
500 W (EMX5)
710 W (EMX7),
630 W (EMX5)
speakON NL4 *1 Phone jack *2
8 Ω Speakers
400 W (EMX7),
370 W (EMX5)
500 W (EMX7),
460 W (EMX5)
(0 dBu = 0.775 Vrms)
*1 1+ = Positive, 1- = Negative
*2 Tip = Positive, Sleeve = Negative
